PSH0731B - 700w Indoor Lamp
This luminaire is ideal for use in shopping malls, large homes, factories, warehouses, aircraft hangers, indoor sporting arenas and any large indoors space with a ceiling height greater than 15 feet.
Specifications
Power Consumption: 730wBrightness: 61000 lumens (Photopic), 81700 lumens (Mesopic) @4500°K
Brightness: 61000 lumens (Photopic), 88900 lumens (Mesopic) @6500°K
Brightness: 58000 lumens (Photopic), 86900 lumens (Mesopic) @7500°K
Available Color Temperatures: 4500°K, 6500°K, 7500°K
Color Rendering Index: ~85Ra
Available Beam Angles: 50°, 90°, 120°
Typical Life: 60000 hours typical
Power Input: 220/240v, 50/60Hz
Weatherproof Rating: IP33
Weight: 19.7 kg, 43.3 lbs, includes mounting bracket
IES Profiles
PSH0731B - 50° Beam High BayPSH0731B - 90° Beam High Bay
PSH0731B - 120° Beam High Bay
Detailed Views
![](psh0731b.01.s.jpg)
![](psh0731b.02.s.jpg)
![](psh0731b.03.s.jpg)
![](psh0731b.04.s.jpg)
![](psh0731b.05.s.jpg)
Actual Installations
![](psh0731b.11.s.jpg)
![](psh0731b.12.s.jpg)
![](psh0731b.13.s.jpg)
![](psh0731b.14.s.jpg)
![](psh0731b.15.s.jpg)
![](psh0731b.16.s.jpg)
![](psh0731b.17.s.jpg)
![](psh0731b.18.s.jpg)
![](psh0731b.19.s.jpg)
![](psh0731b.20.s.jpg)
![](psh0731b.21.s.jpg)
![](psh0731b.22.s.jpg)
Cone Lux Levels
![](psh0731b.50.beam.jpg)
![](psh0731b.90.beam.jpg)
![](psh0731b.120.beam.jpg)
Photometrics
![](psh0731b.50.profile.jpg)
![](psh0731b.90.profile.jpg)
![](psh0731b.120.profile.jpg)

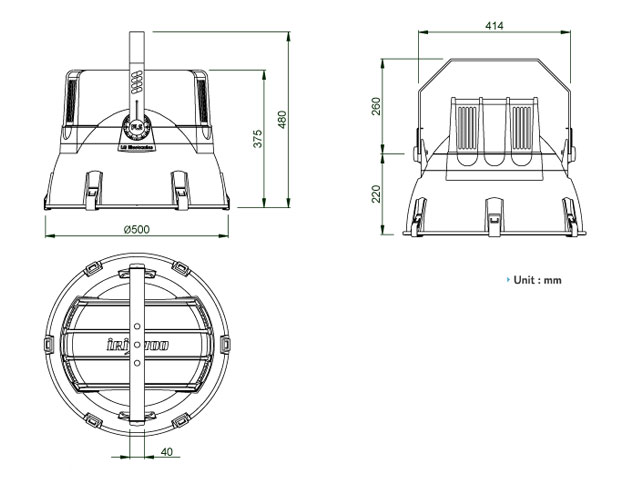

Dimensions
![](psh0731b.dimensions.jpg)
