PSF1032A - 1000w Outdoor Lamp
For use in outdoor areas where weatherproofing is needed, perfect for stadiums for a variety of sports, golf courses, night-time ski resorts, parks, and use as decorative spot lights with the optional color filters.
Specifications
Power Consumption: 1030wBrightness: 96000 lumens (Photopic), 130000 lumens (Mesopic) @7500°K
Available Color Temperatures: 7500°K
Color Rendering Index: ~85Ra
Available Beam Angles: 10°, 20°, 60°
Typical Life: 60000 hours typical
Power Input: 220/240v, 50/60Hz
Weatherproof Rating: IP54
Weight: 22.0 kg, 48.4 lbs
IES Profiles
PSF1032A - 10° Beam SpotlightPSF1032A - 20° Beam Spotlight
PSF1032A - 60° Beam Floodlight
Detailed Views
)
)
)
)
)
)
Actual Installations
)
)
)
)
)
)
)
)
)
)
)
)
)
)
Cone Lux Levels
Photometrics

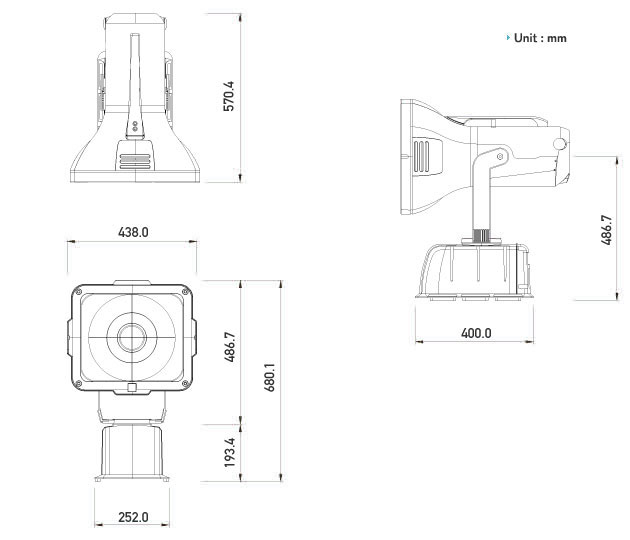

Dimensions
